Product Details

NativeAOT for STM32

C# / .NET NativeAOT runs natively on high-performance MCUs such as STM32H723. Build embedded systems with a modern language without compromise.

🛒 Buy on Taobao Custom Development

Board Photos and Demos

Real hardware, real runtime, production-oriented engineering demos.

🖥️ STM32H723 Board

NativeAOT evaluation board with Ethernet, CAN FD and UART peripherals.

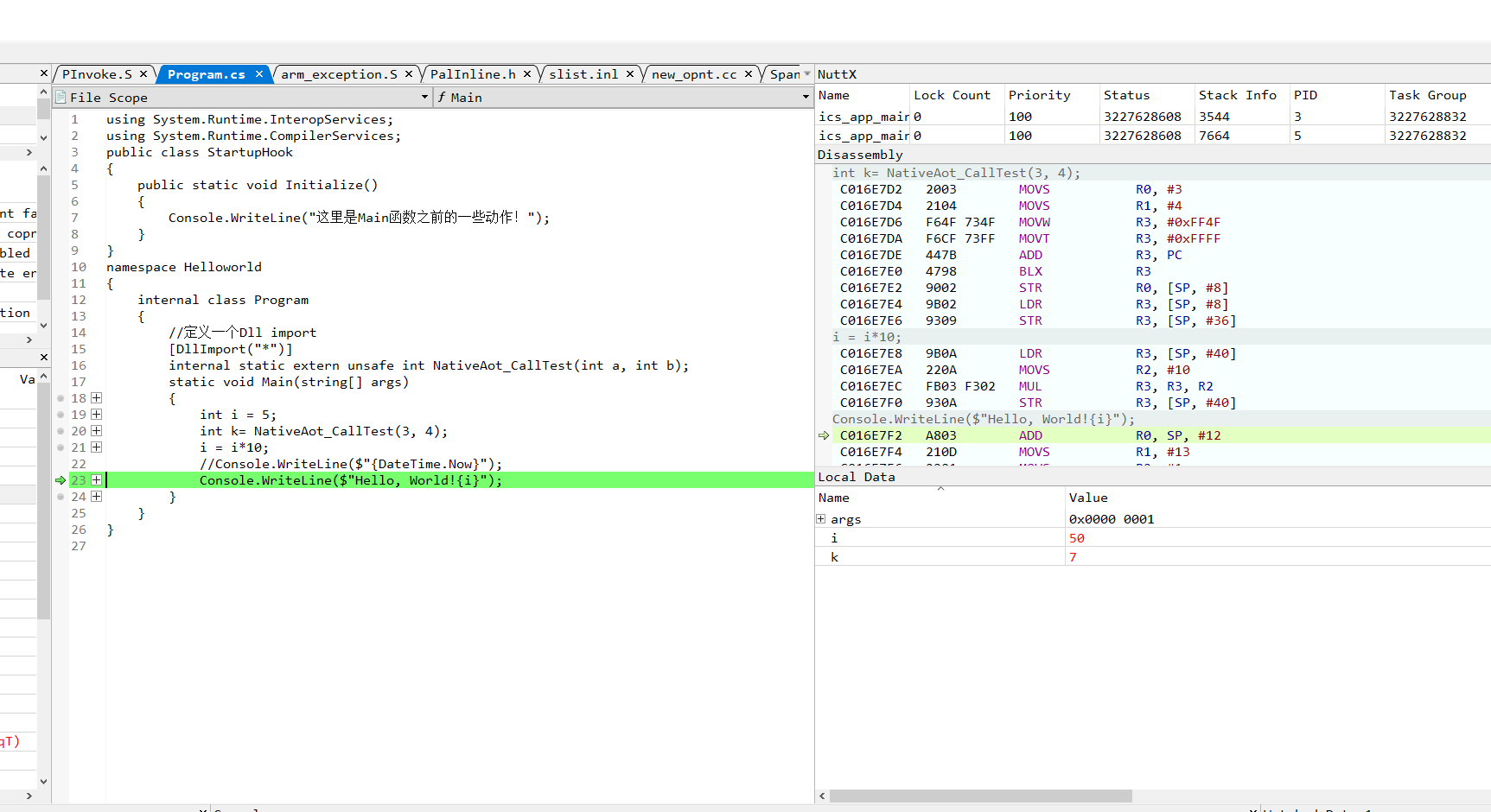

📋 Console Output

C# applications run on STM32 and output console logs.

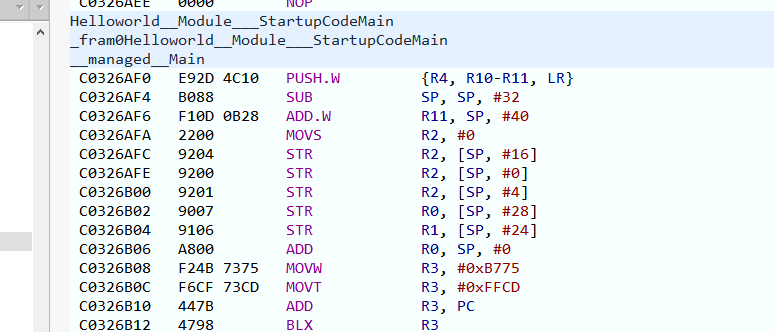

🔍 Disassembly Verification

C# code is compiled into native ARM32 machine code with no JIT or interpreter.

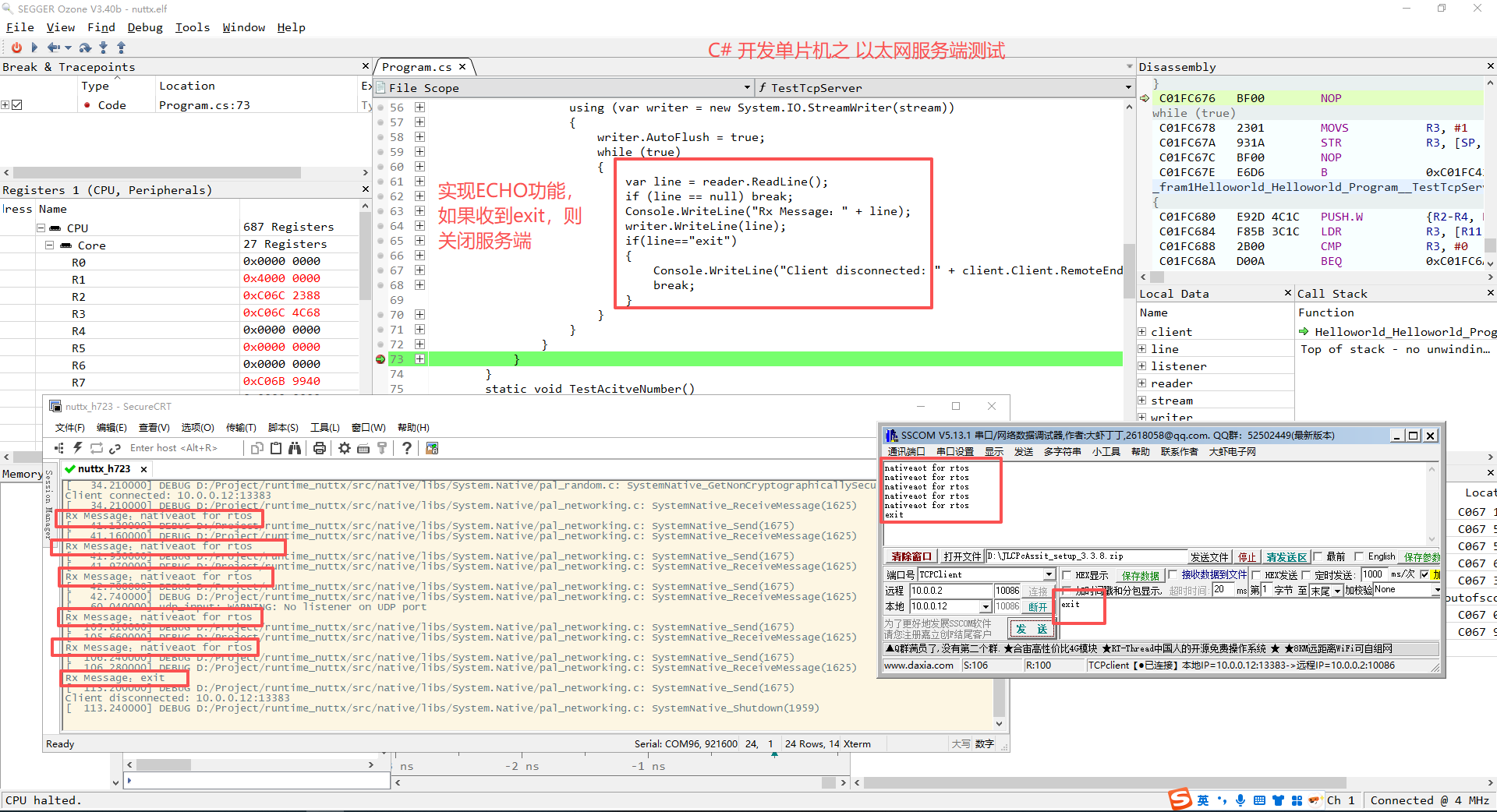

🌐 TCP DEMO

System.Net.Sockets works on STM32 for TCP server and client communication.

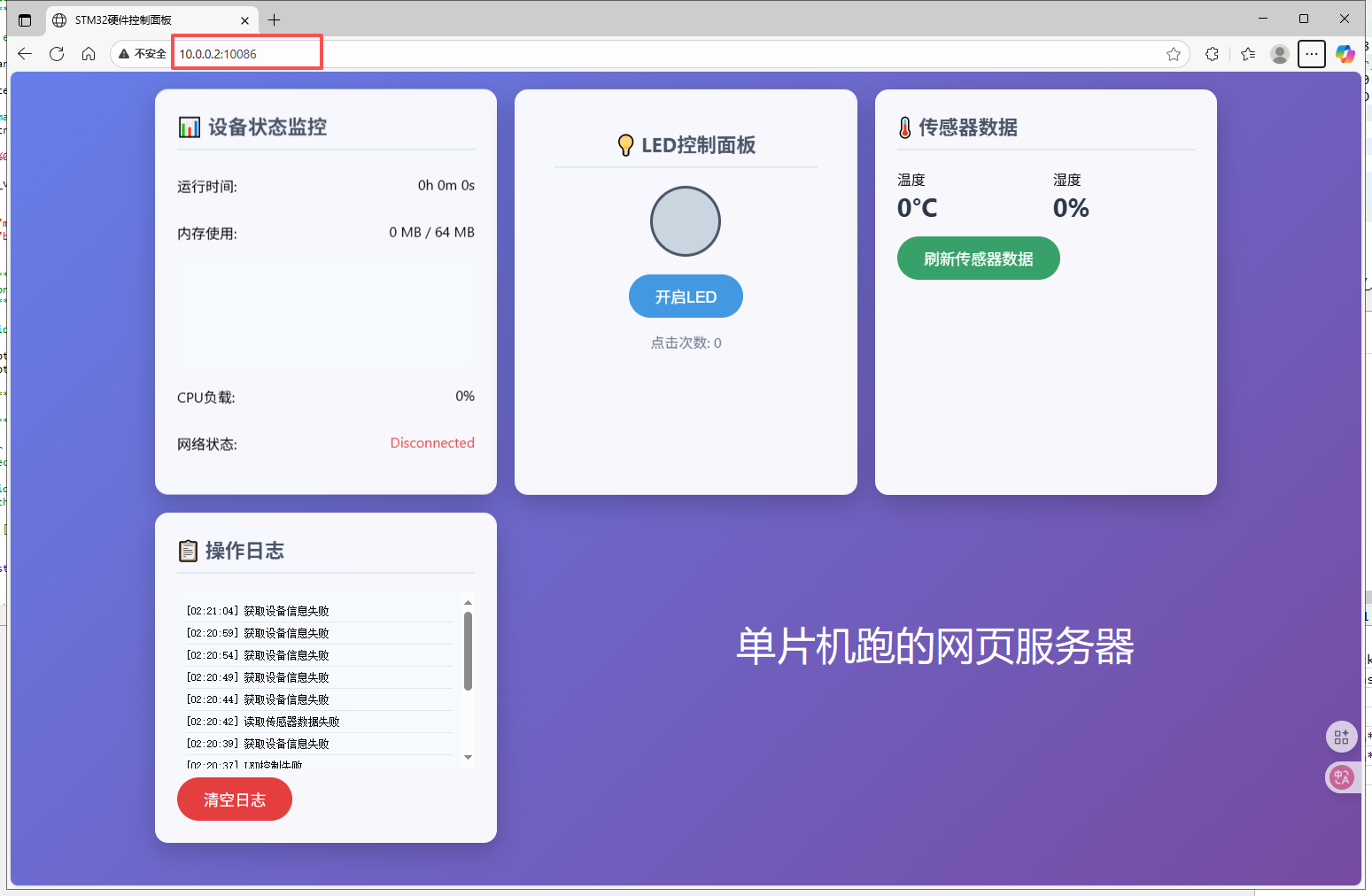

🖱️ On-board Web Debug Panel

Kestrel runs directly on STM32 so the browser can configure UART and send CAN FD frames.

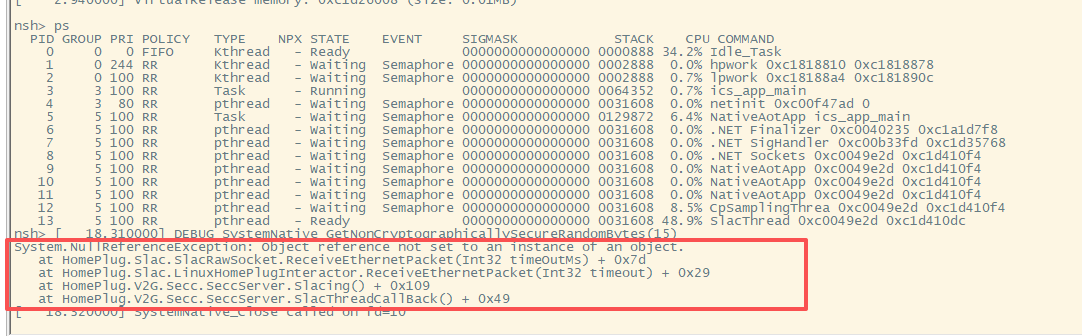

🛡️ C# Exception Safety

try/catch/finally and stack traces work on MCU targets.

Core Features

A complete engineering-ready solution from runtime capabilities to peripheral support.

⚙️ Runtime Capabilities

Full .NET NativeAOT compiled to ARM32 native code without JIT.
async / await, Task, CancellationToken and multithreading work on MCUs.
Kestrel HTTP server runs directly on the board.
SSE pushes CAN FD / UART data to browsers in real time.
NLog, Log4Net, ZIP, FTP Server and OpenSSL ecosystem libraries are supported.

🔌 Peripherals and System

UART configuration with RESTful APIs.
CAN FD frame format, filters and timing parameters are configurable.
GPIO register-level access from unsafe C#.
TCP Server / Client and UDP through System.Net.Sockets.
Same source code for Windows x64 debugging and ARM32 deployment.

Highlight: On-board Web Debug Panel

STM32H723 + Kestrel + SSE — direct browser access for UART and CAN FD debugging

This is not a PC host application. It is a Web debugging tool served directly by the board.

UART parameter configuration
HEX / ASCII data transmission
Real-time receiving area with SSE streaming
CAN FD frame sending and receiving
JSON RESTful API with decoupled frontend and backend

// Board network configuration
#if ARM32
    Ics.Initialize();
    NetworkConfig.SetIpV4Address("eth0", new byte[] { 10,0,0,2 });
    NetworkConfig.IfUp("eth0");
#endif

// Kestrel listens on the board
var host = new WebHostBuilder()
    .UseKestrel()
    .Configure(app => {
        // CAN FD SSE streaming
        app.Map("/api/canfd/stream", m => m.Run(async ctx => { }));
    })
    .UseUrls("http://10.0.0.2:10086")
    .Build();
host.Start();


Sample Projects

Complete projects that actually run on STM32H723.

Web / HTTP

Kestrel_Demo

Web debug panel with Kestrel, SSE and JSON APIs.

Network

TcpServer / TcpClient

async/await TCP server and client examples.

Network

UdpServer

UDP send and receive with System.Net.Sockets.

Peripheral

GpioForCSharpDriver

unsafe C# directly accesses STM32 GPIO registers.

Multithreading

MultipleThread

Task, Thread, lock and Mutex examples on MCU targets.

Timer

System.Threading.Timer in embedded scenarios.

File / IO

ZipTest

ZIP compression and decompression on MCU file systems.

Service

Zhaobang.FtpServer

FTP server running on MCU.

Security

openssl_test

OpenSSL P/Invoke integration for TLS and crypto.

Interop

PInvokeTest

C# P/Invoke calls native C/C++ libraries.

Logging

Log4NetDemo / NLog

Mainstream .NET logging frameworks on MCU.

Exception

NullReference / GcTest

Validate .NET exception handling and GC correctness.

Application Scenarios

Not just Hello World — deliverable product-grade solutions.

🛠️

On-board Debug Tools

Device-hosted Web UI for testing, delivery and field support.

🏭

Industrial Control Gateways

CAN FD + TCP/UDP + REST API for field-bus data integration.

🔗

Protocol Converters

Use C# to manage multiple interfaces and quickly build protocol bridges.

📦

Edge Computing Nodes

MCUs with .NET ecosystem and network services for edge processing.

Get an Evaluation Board / Technical Consulting

For NativeAOT for STM32 inquiries, contact Mr. Guo.

🛒 Buy on Taobao

👨‍💼 Mr. Guo 13602648765

📧 Email ics@icsharptech.com

📍 Shenzhen ICS Technology Co., Ltd.
